A lightweight desktop Electron app to compose manual test sets, execute them, and report results to Orangebeard with rich logs and attachments.

Create an organizationCreate an organization

Installation​

The desktop reporter can be downloaded from the Releases page on GitHub.
Or check out the repository and build the Electron app from source!

Windows​

  • Download the latest Windows installer. (MSI)
  • Double-click the installer and follow the prompts.
  • Launch “Orangebeard Desktop Reporter” from the Start Menu.

macOS​

  • Download and extract the macOS darwin zip archive and move “Orangebeard Reporter.app” to Applications.
  • If macOS Gatekeeper blocks the app, run:
xattr -d com.apple.quarantine "/Applications/Orangebeard Reporter.app"
  • Open “Orangebeard Reporter” from Applications.

Linux​

  • Debian/Ubuntu: download the .deb package and install:
sudo apt install ./orangebeard-desktop-reporter_<version>_amd64.deb
  • Other distros: download and extract the standalone zip to run the app, or run from source (see below).

Run from source (all platforms)​

  • Requirements: Node.js 18+, npm.
  • Steps:
git clone git@github.com:orangebeard-io/desktop-reporter.git
cd desktop-reporter
npm install
npm run dev

Quick Start​

  1. Open the app.
  2. Click Settings and fill at least:
  3. Create a new test set (or open an existing one).
  4. Fill test set metadata: Organization, Project and Test Set Name.
  5. Click Start Run to begin execution. The run will now be visible as In Progress in Orangebeard.
  6. Mark tests/steps as Passed/Failed/Skipped, add remarks, and attach files.
  7. Click Finish Run to report and close the run.

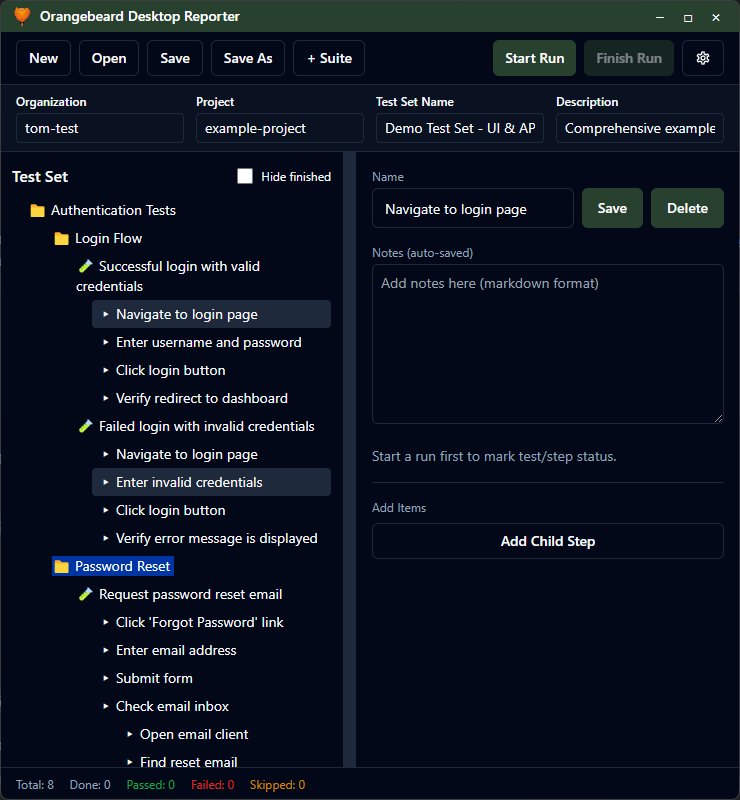

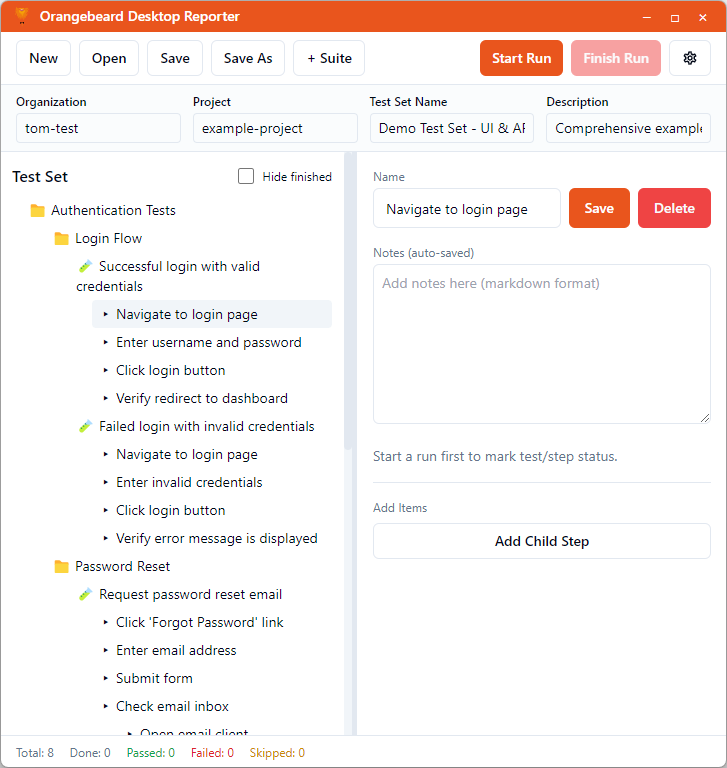

UI Overview​

Titlebar​

  • Window controls (minimize, maximize, close).

Top Toolbar​

  • New: create a new empty test set.
  • Open: open an existing test set file.
  • Save / Save As: save the current test set to disk (JSON).
  • + Suite: add a new root suite to your test set.
  • Start Run: begin a reporting session to Orangebeard.
  • Finish Run: report and close the current run.
  • Settings: open application configuration.
Create an organizationCreate an organization

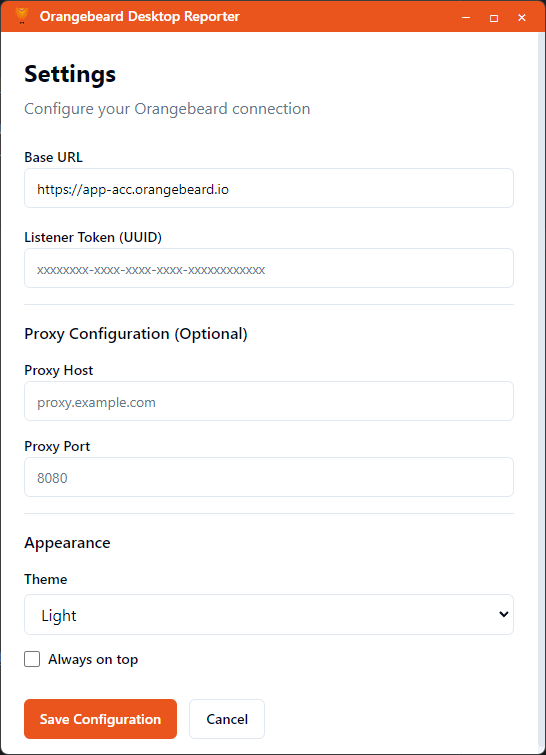

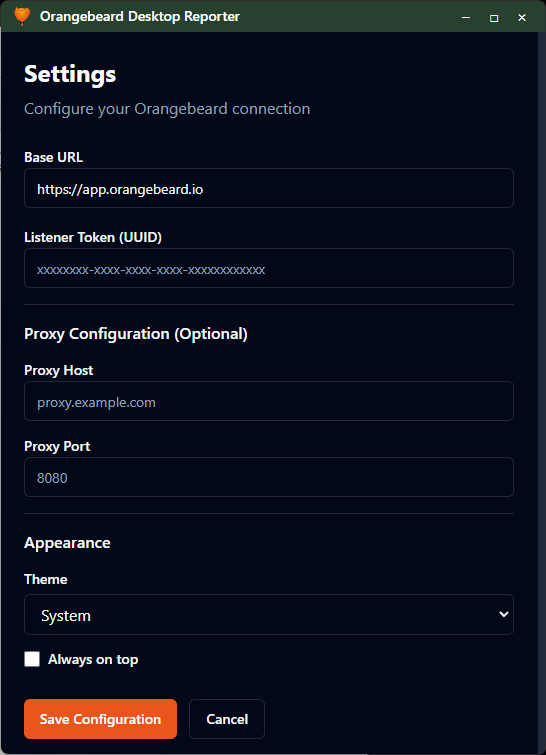

Settings​

  • Base URL: Orangebeard endpoint (e.g., https://app.orangebeard.io).
  • Listener Token (UUID).
  • Proxy (optional): host and port.
  • Appearance: System/Light/Dark.
  • Always on top: keep the window above others.
Create an organizationCreate an organization



note
  • You can save an incomplete configuration (e.g., empty Listener Token). This is convenient if you’re still collecting credentials.
  • However, to start a test run the app requires Base URL, Listener Token, plus Organization, Project, and Test Set Name in your test set metadata.

Test Set Info (top of content area)​

  • Organization, Project, Test Set Name, Description.
  • These fields are used to initialize and label runs in Orangebeard.
Create an organizationCreate an organization

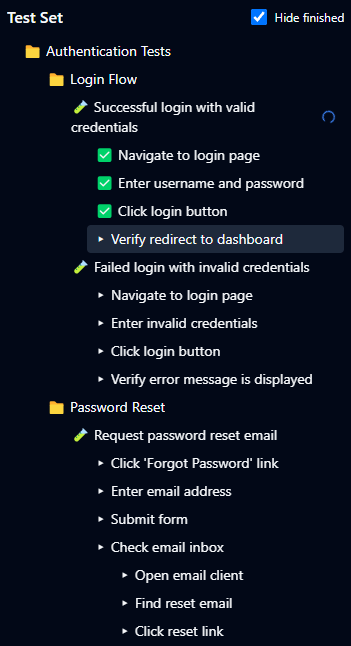

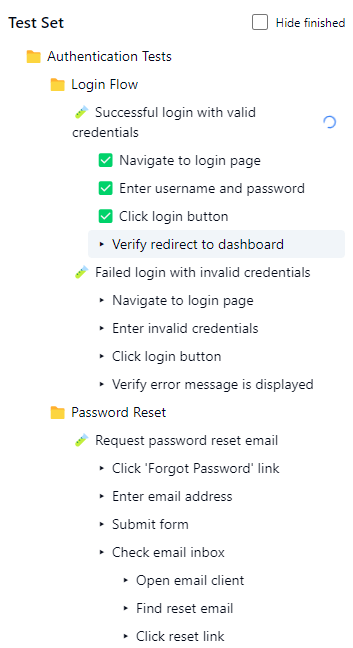

Left Tree (structure)​

  • Hierarchical view of Suites and Tests.
  • Hide finished toggle: hides items with a finished status in an in progress test run when enabled.
  • Resizable divider between tree and details.
Create an organizationCreate an organization

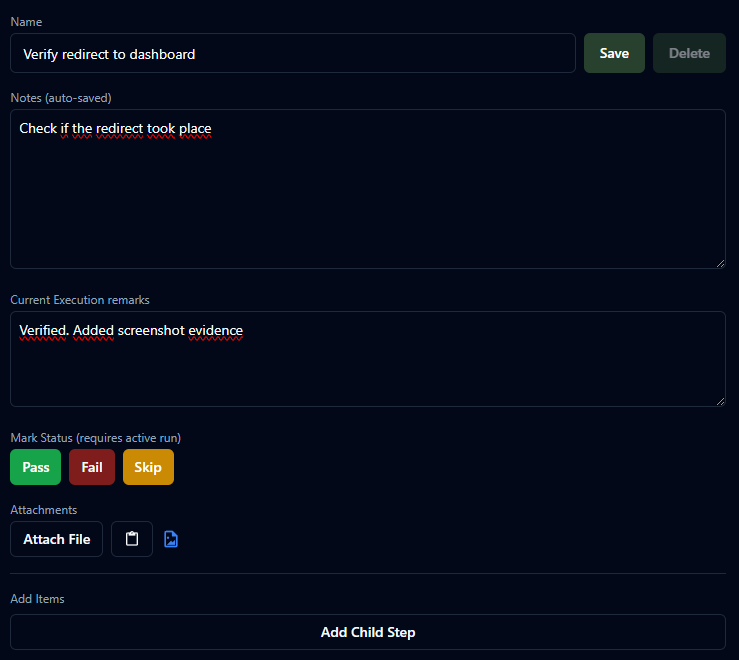

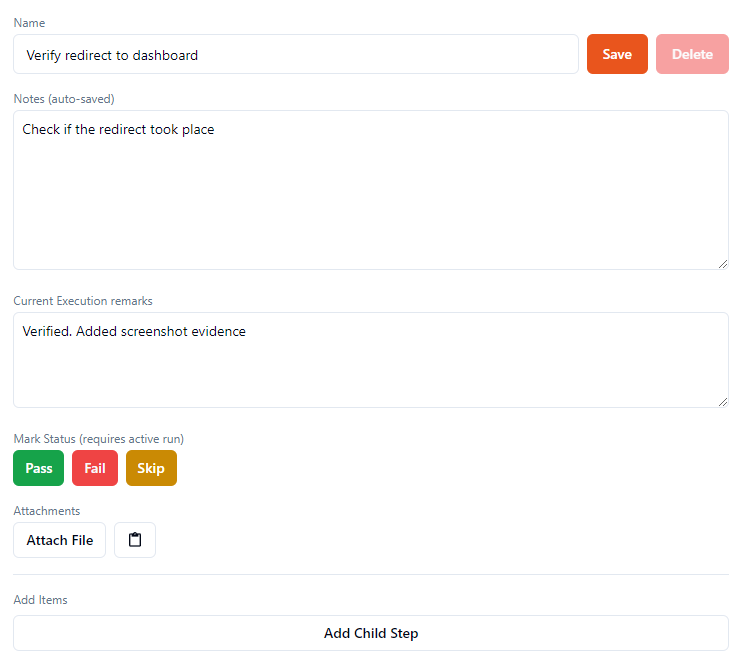

Details Pane (right side)​

Context-aware editor for the selected suite/test/step:

  • Name: rename the selected item (Save button).
  • Delete: remove the selected item (disabled during active run).
  • Notes (markdown): persistent notes saved with the test set file.
  • Current Execution remarks (markdown, shown only during an active run):
    • Run-specific observations that are not saved to the test set file.
    • Will be sent as log messages when you mark status.
  • Mark Status: Pass/Fail/Skip the current test or step.
  • Attachments:
    • Attach File (from disk).
    • Paste Image (from clipboard).
    • Preview images in-app.
Create an organizationCreate an organization

Bottom Status Bar​

  • Shows execution status and current run information.

Managing Test Sets​

Create a New Test Set​

  • Click New.
  • Use + Suite to add root suites.
  • In the Details Pane, use Add Test / Add Step to build structure.

Open/Save​

  • Open: load .json test sets (e.g., my-tests.obtest.json).
  • Save: writes to the current file.
  • Save As: write to a new file.

Editing Structure​

  • Drag and drop tests to reorder or move between suites.
  • Drag and drop steps to reorder or nest under other steps.

Running and Reporting​

Prerequisites to Start a Run​

  • Settings:
    • Base URL
    • Listener Token (UUID)
  • Test Set Metadata:
    • Organization
    • Project
    • Test Set Name

If any are missing, you’ll see a clear message listing what’s required.

Start a Run​

  • Click Start Run.
  • The app shows that a run is active; deletion of items is disabled during a run.

During a Run​

  • Select a Test or Step, then:
    • Write Notes (saved to the run obtest.json file). Notes are sent with the test or step as log messages when a status is marked.
    • Write Current Execution remarks (run-only; not saved to file). Remarks are sent as log messages when a status is marked.
    • Attach files or paste images (each attachment creates its own log entry).
    • Mark Status: Pass, Fail, or Skip.

Rules and behaviors:

  • Failure logging:
    • When marking FAILED, both Notes and Current Execution remarks (if present) are sent as ERROR logs.
  • Pass/Skip with failed steps:
    • Tests can’t be marked Passed/Skipped if they have failed steps.
  • Unreported steps:
    • The app marks any unreported steps as skipped when a test is finished to keep run state consistent.

Attachments​

  • File size limit: 32 MB.
  • Each attachment is associated to a single log entry created at upload time.
  • Multiple files can be attached to the same step or log.
  • Attach to Test or specific Step (based on current selection).

Finish a Run​

  • Click Finish Run.
  • The app:
    • Finishes the run in Orangebeard, marking any unexecuted tests and steps as skipped.
    • Shows a message: “Test run finished and reported in Orangebeard!”
    • Clears all execution state (statuses, remarks) so:
      • Your “Hide finished” filter won’t hide items anymore.
      • You’re ready to Start a new run.

Settings Details​

Proxy​

  • Optional HTTP proxy configuration (host + port).
  • Useful in restricted network environments.

Theme​

  • System, Light, or Dark.
  • Toggle at any time from Settings.

Always on Top​

  • Keeps the window floating above others—handy during test execution.

Troubleshooting​

  • Can’t start run:
    • Ensure Base URL, Listener Token, Organization, Project, and Test Set Name are set.
  • File attachments failing:
    • Verify the file is under 32 MB.
  • Nothing appears in Orangebeard:
    • Confirm Listener Token is valid.
    • Check Proxy settings if your network requires one.
  • macOS won’t open the app:
    • Run the Gatekeeper bypass command (see macOS).

Uninstall​

  • Windows: Remove via “Add or Remove Programs.”
  • macOS: Delete “Orangebeard Reporter.app” from Applications.
  • Linux (Debian/Ubuntu):
sudo apt remove orangebeard-desktop-reporter

Where data is stored​

  • Test sets: wherever you saved your .json files.
  • App configuration: stored in your OS’s standard application data folder.
